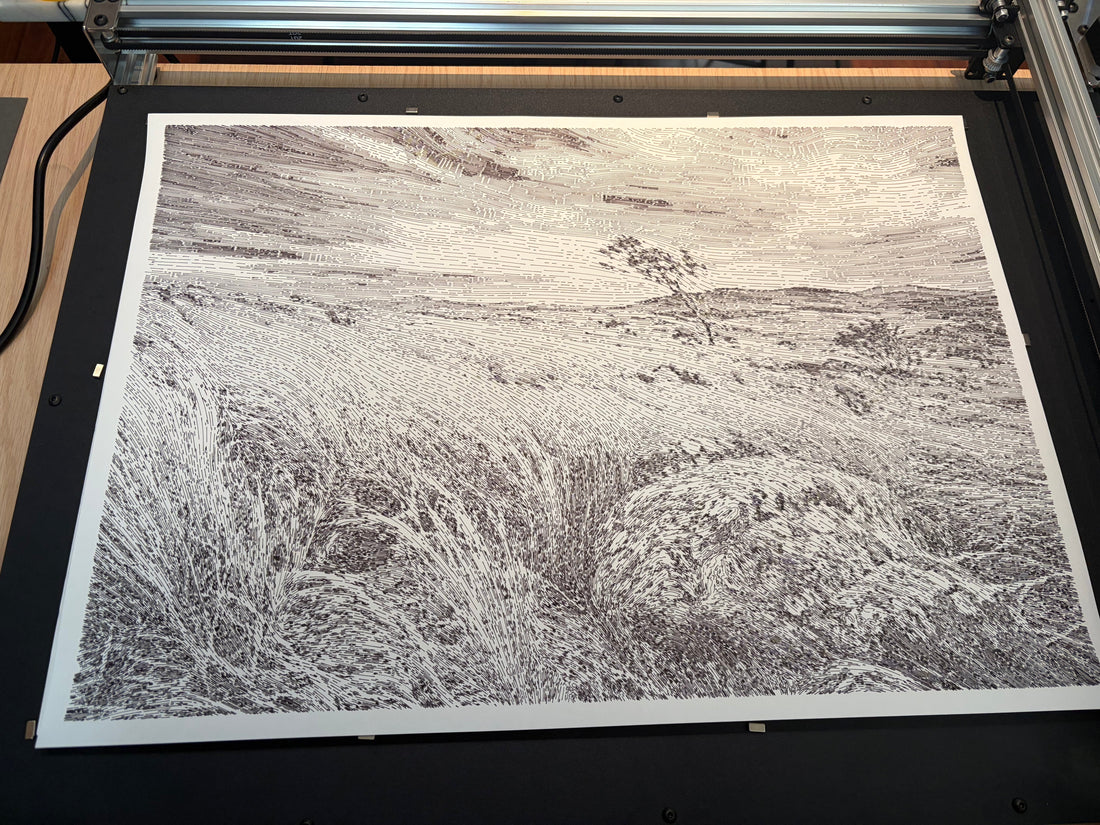

The UUNA TEK ArtStation 1824 is a large-format pen plotter with a 24 × 18-inch drawing area. After spending time with it, the thing that has impressed me most isn’t an exotic feature or clever software trick. It’s much simpler than that: the machine draws exactly where it is supposed to draw.
That may sound like a low bar, but for a plotter it’s the foundation of everything else. The ArtStation 1824 is fast, accurate and, above all, reliable. Once a plot is underway, I’m comfortable leaving it to run, knowing it will continue doing what I asked of it. For long, detailed pieces, that confidence matters enormously—and it is very welcome coming from the world of laser cutters, where I have to keep an eye on everything all the time.
Size matters
The most obvious advantage of the ArtStation 1824 is its size. Large working areas are one of the strengths of pen plotters generally, especially compared with many desktop printers and laser machines, but the extra space here is useful even when you aren’t producing work at the maximum dimensions.
There is generous room around an A2 sheet, for example. That is particularly helpful when using a pen that cannot be mounted vertically, such as some fountain pens. Rather than having the edge of the paper dictate where the drawing must sit, you can offset the sheet and use the surrounding space to accommodate the angle of the pen.
The same applies to smaller plots. A large bed simply gives you room to work: room for positioning paper, testing pens, taping things down and making adjustments without everything feeling cramped. It’s a weight off your mind not to be plotting too close to the edges of a piece of paper, so treat yourself and use the space available.
My general advice with plotters is to buy the largest machine you can reasonably accommodate. The qualification is important, though, because this is a genuinely large piece of equipment. You need enough permanent space for the plotter itself, as well as space for the materials you intend to use with it. Good-quality art paper should be stored flat, so a large-format machine tends to create a large-format storage requirement as well.
It just works
The ArtStation’s real strength is its predictability. A pen plotter can spend hours drawing thousands of lines, and a small positioning error can ruin an otherwise successful piece very late in the process. Reliability therefore matters more to me than a long list of secondary features.
In my experience, the ArtStation 1824 does the essential job extremely well. Its movements are quick and precise, and it repeatedly places the pen where it should. I don’t feel the need to hover over it throughout an entire plot or worry constantly about whether it has lost its position.
The large, rigid base and metal gantries give the whole machine a reassuringly solid feel. Nothing about the main structure seems flimsy or improvised. UUNA TEK uses a CoreXY motion system, and the combination of that mechanism and the substantial frame produces smooth, stable movement across the full working area.
The pen-holding mechanism is comparatively simple, but that simplicity works in its favour. It grips a wide variety of pens securely and makes changing tools straightforward. It also supports angled mounting, which is important for brushes, fountain pens and other tools that don’t work well when held perfectly upright. The manufacturer specifies support for tools up to 16 mm in diameter and angles from 45 to 90 degrees, which provides plenty of scope for experimentation.
The trade-offs of the solid base
That robust base plate is both one of the machine’s strengths and one of its limitations.
Because the drawing surface is built firmly into the frame, its height and working area are largely fixed. This limits the thickness of the objects you can draw on, and the relationship between the base and the gantries makes it difficult to place an oversized rigid surface beneath the machine and let it extend beyond the nominal drawing area.
In theory, someone determined enough could modify almost anything. In practice, the base is an integral part of the ArtStation’s structure, and even the controller wiring passes through it. Changing it would not be a casual adjustment for most owners.
Whether this matters will depend on the work you intend to produce. If you mainly plot on paper, card, canvas or other reasonably thin materials that fit on the bed, the base is excellent. It gives you a flat, stable and predictable working surface. If you want to draw directly onto thick objects or very large rigid panels, however, a more open-frame design may offer greater flexibility.
A deliberately straightforward machine
The ArtStation 1824 isn’t particularly feature-rich. It uses a wired USB connection, with a USB-A cable that already feels a little retro beside a modern laptop. There is no wireless control, and the computer needs to remain awake and connected while a plot is running.
One mainly psychological concern is that the machine lacks limit switches and automatic homing, so it doesn’t inherently know where the pen head is or when it is about to try to move past the physical boundaries. If you’re careful, the software takes care of this for you, but it is jarring when you do make a mistake and can make it feel like you’re treading on eggshells for a little while afterwards. Once you get into your stride and have a sensible workflow in place it is very rarely an issue, but for new users it might be an unpleasant initial surprise to get past.
Setup is similarly hands-on. You will spend time positioning paper, securing it, adjusting the pen height anDiscover if the UUNA TEK ArtStation 1824 is right for your studio. We cover its 24x18-inch bed, pen angle support, rock-solid reliability, and open-source software setup.d checking that everything lines up properly. Then, when you’ve become complacent and skipped or forgotten a step, you’ll have to stop the plot and do it all over again! Spend time with any pen plotter and you will start to appreciate quite how magical your human hands are, and the ArtStation machines are no different. It simply takes time and experimentation to get used to drawing without the incredibly delicate feedback and pressure control we take for granted when drawing by hand.
None of this makes the ArtStation difficult to use once you understand its routine. It simply means the experience is closer to operating a piece of studio equipment than using a consumer printer. There is some responsibility on the operator, and it rewards careful setup.
The software is the weak point
The hardware feels much more polished than the software experience.
The supplied workflow is based around an Inkscape extension. Installation wasn’t especially difficult, but it did involve a few manual steps. As an advanced computer user I found it pretty easy, but someone less comfortable with computers might find the initial setup a more significant hurdle.
Using an Inkscape extension also has advantages. Inkscape is free, available across the major desktop operating systems and already familiar to many people working with vector graphics. Being able to send artwork to the plotter from the application in which it was prepared is convenient.
The drawback is that the plotter controls feel constrained by the extension and by Inkscape itself. The UI feels more like a collection of controls than a tightly curated workflow. Everything needed to set up and run a plot is there, but users aren’t guided through the process, so it takes some familiarity and experimentation to find the right sequence of settings and actions.
While a plot is running, Inkscape freezes completely, leaving it unavailable for other work. Combined with the requirement to keep the computer awake and connected, this makes the software side feel more rudimentary than the hardware deserves.
There is, however, a very important upside: the machine’s operation is not hidden behind a proprietary cloud service or a completely locked-down ecosystem. UUNA TEK has used an open and widely understood interface for controlling the machine and that leaves the field open for better control software, workflow tools and community-created integrations. Compared with so many companies locking down their tools these days—and charging subscription pricing for the privilege—this is a fantastic opportunity for the community. A good standalone controller could address many of the current limitations: background plotting, clearer positioning controls, better job monitoring and easier integration with generative-art code. I may even throw my own hat into the ring at some point.
Final thoughts
The ArtStation 1824 gets the most important things right. It is large, fast, accurate, solidly constructed and dependable over long plots. Its generous working area is useful even for smaller pieces, and the simple but well-designed pen holder opens the door to a wide range of pens.
There are some compromises. The fixed base limits the kinds of surfaces you can work on, setup remains fairly manual, and the software experience has plenty of room to improve. I would also have welcomed conveniences such as automatic homing, limit switches and a more modern connection and control workflow. Then again, given the choice, I wouldn’t make it fancier and twice the price. It’s just worth going in with your eyes open.
Even so, these shortcomings don’t overshadow the quality of the plotting hardware. Features can be added and software can evolve—particularly when the underlying system is accessible enough for a community to build around it. What is much harder to fix is a machine that isn’t mechanically accurate or reliable, and fortunately that isn’t a problem here.
The ArtStation 1824 is a very capable large-format plotter that does its core job extremely well. If you have the physical space for it and want a dependable machine for serious generative or plotted artwork, it is easy to recommend.
This is the review from https://www.phillipdrew.com/ by Phillip Drew
